Part Number : PIC16F819
Function : 18/20-Pin Enhanced Flash Microcontrollers with nanoWatt Technology
Pacakge : 18, 20 DIP, SOIC Pin Type
Maker : Microchip Technology

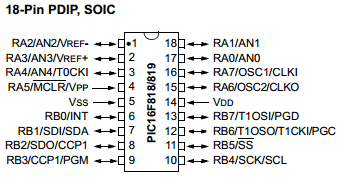

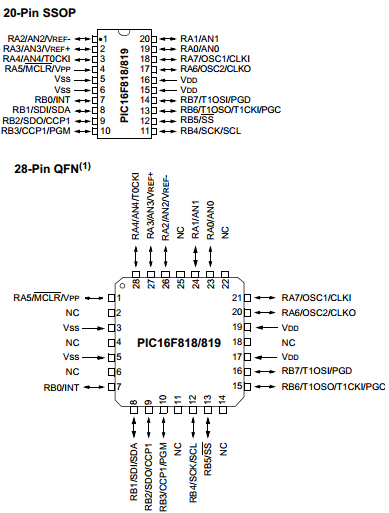

Pinouts :
Description :
The PIC16F818 / PIC16F819 belongs to the Mid-Range family of the PICmicro devices. The devices differ from each other in the amount of Flash program memory, data memory and data EEPROM.
Pinouts :
1. 16 I/O pins with individual direction control
2. High sink/source current: 25 mA
3. Timer0: 8-bit timer/counter with 8-bit prescaler
4. Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock
5. Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
6. Capture, Compare, PWM (CCP) module:
- Capture is 16-bit, max. resolution is 12.5 ns
- Compare is 16-bit, max. resolution is 200 ns
- PWM max. resolution is 10-bit
7. 10-bit, 5-channel Analog-to-Digital converter
8. Synchronous Serial Port (SSP) with SPI (Master/Slave) and I2C™ (Slave)
Others datasheet of same file : PIC16F818, PIC16F819
