Part Number : CD8227GP

Function : LOW FREQUENCY POWER AMPLIFIER

Package : HDIP 12 Pin Type

Maker : SUM, Jilin Sino-Microelectronics ( http://www.hwdz.com.cn/ )

Image :
CD8227GP datasheet

Description :

CD8227GP is audio power IC with built-in two Channels developed for portable radio cassette tape recorder with power ON/OFF switch. Thermal shut down protection circuit is built in. Because of the parts reduction and DIP (Dual in line package), space merit is remarkable.

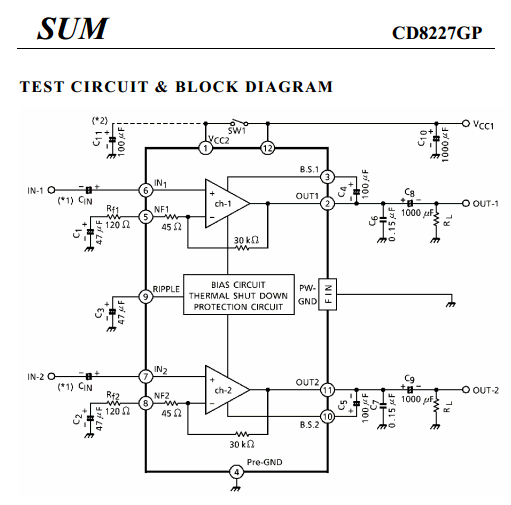

Block Diagram

Features :

1. High Power

2. Low popping noise at power ON

3. Small Quiescent Current

4. Stand-By switch

5. Soft Clip

Datasheet PDF Download :
CD8227GP pdf

Others datasheet of same file : CD8227, CD8227G
