Part Number : 3F9454B

Function : 8-BIT CMOS MICROCONTROLLER

Package : DIP, SOP, SSOP 20 Pin type

Maker : Samsung

Image :
3F9454B datasheet

Description :

The S3C9454B / S3F9454B single-chip 8-bit microcontroller is designed for useful A/D converter application field. The S3C9454B/F9454B uses powerful SAM88RCRI CPU and S3C9454B/F9454B architecture. The internal register file is logically expanded to increase the on-chip register space.

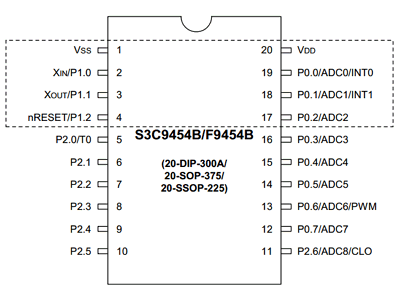

Pinout :

The devices has 4K bytes of on-chip program ROM and 208 bytes of RAM. The S3C9454B / S3F9454B is a versatile general-purpose microcontroller that is ideal for use in a wide range of electronics applications requiring simple timer/counter, PWM. In addition, the S3C9454B/F9454’s advanced CMOS technology provides for low power consumption and wide operating voltage range.


Datasheet PDF Download :
3F9454B pdf

Others datasheet of same file : 3C9454B, 3F9454, S3C9454B, S3F9454
