Part Number : BD699
Function : 80V, Plastic Medium-Power NPN Transistor
Maker : Mospec

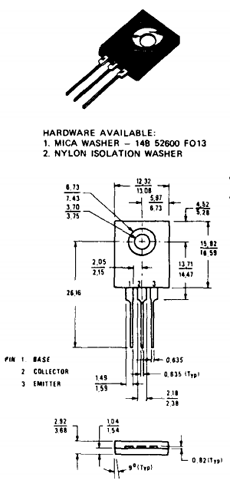

Pinouts :
Description :
8.0 Ampere Darlington Power Transistor NPN Silicon Transistor.
Features :
1. High DC Current Gain -
hFE = 750(Min) @ Ic = 3.0 and 4.0 Adc
2. Monolithic Construction.
Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 80 V
2. Collector to Emitter Voltage : Vceo = 80 V
3. Emitter to Base Voltage : Vebo = 5 V
4. Collector Current : Ic = 8 A
5. Total Dissipation : Pc = 70 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Datasheet PDF Download :
Others datasheet of same file :
BD695A, BD697, BD697A, BD699A
