Part Number : SI-3050KM

Function : 1 A, Low-Dropout, 5.0 V Regulator

Package : 5-lead TO-252 Type

Maker : Sanken,  Allegro MicroSystems

Image, Pinouts :
SI-3050KM datasheet

Description :

Designed to meet the high-current requirements in industrial and consumer applications; embedded core, memory, or logic supplies; TVs, VCRs, and office equipment, the SI-3050KM voltage regulator offers the reduced dropout voltage and low quiescent current essential for improved efficiency. This device delivers a regulated output at up to 1 A. Integrated thermal and overcurrent protection enhance overall system reliability. Devices with other output voltages are also available.

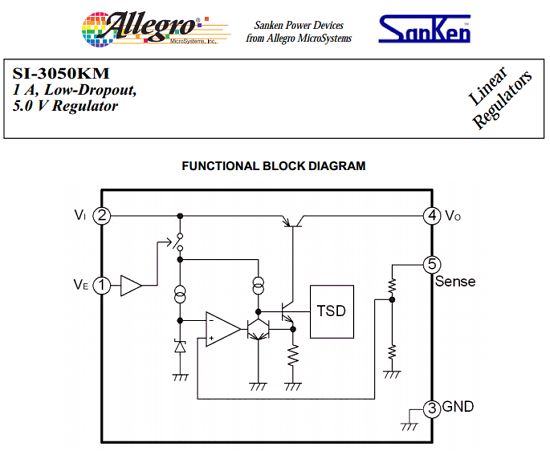

Block Diagram

Features :

1. 1 A Output Current at 5.0 V

2. 0.6 V Maximum Dropout Voltage at IO = 1 A
3. Fast Transient Response
4. Remote Voltage Sensing
5. Foldback Current Limiting
Applicatiosn :
1. TVs, VCRs, Electronic Games
2. Embedded Core, Memory, or Logic Supplies
3. Printers and Other Office Equipment
4. Industrial Machinery
5. Secondary-Side Stabilization of Multi-Output SMPS


Datasheet PDF Download :
SI-3050KM pdf

Others datasheet of same file : SI3050KM, SI-3050
