Part Number : RF2690
Function : W-CDMA receive AGC and demodulator
Package : 20-pin, 4mmx4mm Type
Maker : RF Micro Devices
Pinouts :
Description :
The RF2690 is an integrated complete IF AGC amplifier and quadrature demodulator designed for the receive section of W-CDMA applications. It is designed to amplify received IF signals, while providing 70dB of gain control range, a total of 90dB gain, and demodulation to base band I and Q signals.
This circuit is designed as part of RFMD’s single mode W-CDMA chipset, which includes the RF9678 as modulator and IF AGC and the RF2638 as upconvertor. The IC is manufactured on an advanced 25GHz FTSilicon Bi-CMOS process, and is packaged in a 20-pin, 4mmx4mm, leadless chip carrier.

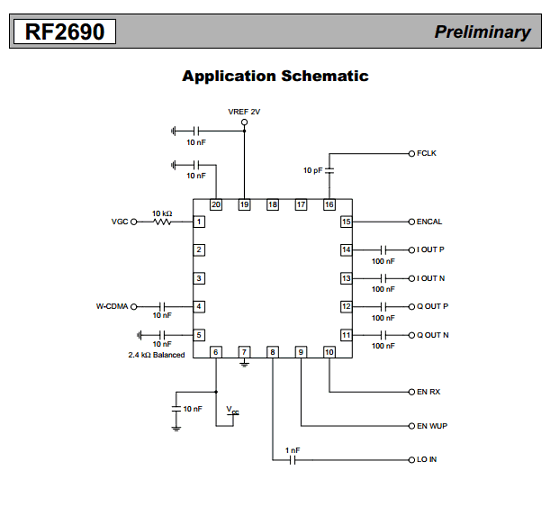

Schematic
Features :
• Digitally Controlled Power Down Mode
• 2.7V to 3.3V Operation
• Digital LO Quadrature Divide-by-4
• IF AGC Amp with 70dB Gain Control
• 80dB Maximum Voltage Gain
