Part Number : LTC5800-WHM

Function : SmartMesh WirelessHART Mote-on-Chip

Package : 72-Lead (10mm × 10mm × 0.85mm) Plastic QFN

Maker : Linear Technology

Image :
LTC5800-WHM datasheet

Description :

SmartMesh WirelessHART wireless sensor networks are self managing, low power networks built from wireless nodes called motes. The LTC5800-WHMis the WirelessHART Mote-on-Chip integrated circuit in the Eterna * family of IEEE802.15.4 System-on-Chip(SoC) solutions, featuring a highly integrated, low power radio design by Dust Networks as well as an ARM Cortex-M3 32-bit microprocessor running Dust’s embedded SmartMesh WirelessHART networking software.

The LTC5800-WHM SoC features an on-chip power amplifier(PA) and transceiver, requiring only power supply decoupling, crystals, and antenna with matching circuitry to create a complete wireless node.

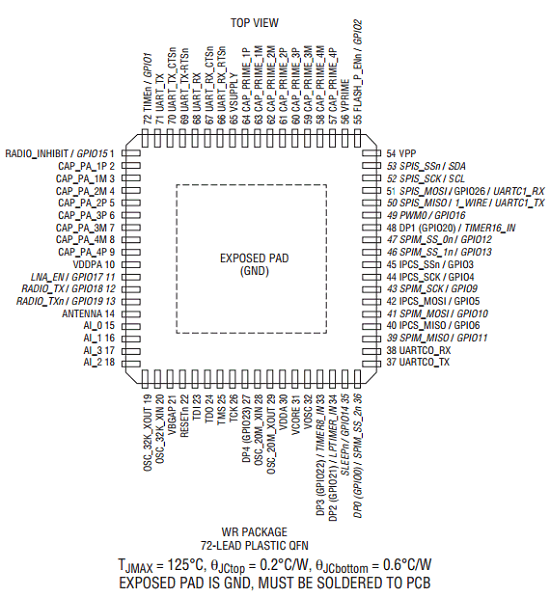

Pinouts :

Features

1. Complete Radio Transceiver, Embedded Processor, and Networking Software for Forming a Self-Healing Mesh Network

2. Compliant to WirelessHART (IEC62591) Standard

3. SmartMesh Networks Incorporate:

  (1) Time Synchronized Network-Wide Scheduling

  (2) Per Transmission Frequency Hopping

  (3) Redundant Spatially Diverse Topologies

  (4) Network-Wide Reliability and Power Optimization
