Part Number : TLE2062AMDR

Marking : 2062AM

Function : EXCALIBUR JFET-INPUT HIGH-OUTPUT-DRIVE mPOWER OPERATIONAL AMPLIFIERS

Package : SOIC 8 Pin Type

Maker : Texas Instruments

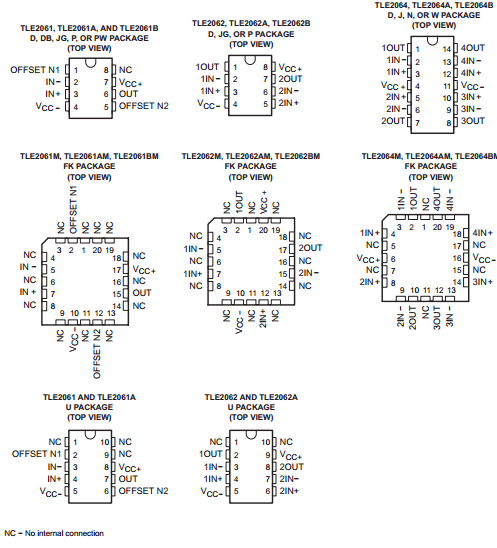

Pinouts :
TLE2062AMDR datasheet

Description :

The TLE2062AMDR, TLE206x series of low-power JFET-input operational amplifiers doubles the bandwidth of the earlier generation TL06x and TL03x BiFET families without significantly increasing power consumption. Texas Instruments Excalibur process also delivers a lower noise floor than the TL06x and TL03x. On-chip zener trimming of offset voltage yields precision grades for dc-coupled applications. The TL206x devices are pin-compatible with other Texas Instruments BiFETs; they can be used to double the bandwidth of TL06x and TL03x circuits or to reduce power consumption of TL05x, TL07x, and TL08x circuits by nearly 90%.

Features

1. 2×Bandwidth (2 MHz) of the TL06x and TL03x Operational Amplifiers
2. Low Supply Current ... 290 µA/Ch Typ
3. On-chip Offset Voltage Trimming for Improved DC Performance
4. High Output Drive, Specified into 100-Ω Loads
5. Lower Noise Floor Than Earlier Generations of Low-Power BiFETs


Datasheet PDF Download :
TLE2062AMDR pdf

Others datasheet of same file :

TLE2064ACDR, TLE2061CDR, TLE2064IR, TLE2062AIDR
