art Number : D5032

Function : NPN Transistor / BV cbo = 1500V, Ic = 8A

Package : TO-92 Type

Maker : Jilin Sino-microelectronics

Image :
D5032 datasheet

Description :

D5032 is high breakdown voltage of NPNbipolar transistor. (Jilin Sino-microelectronics co., Ltd)


The main process of manufacture:
high voltage mesa type process, riple diffused process etc, adoption of fully plastic packge.

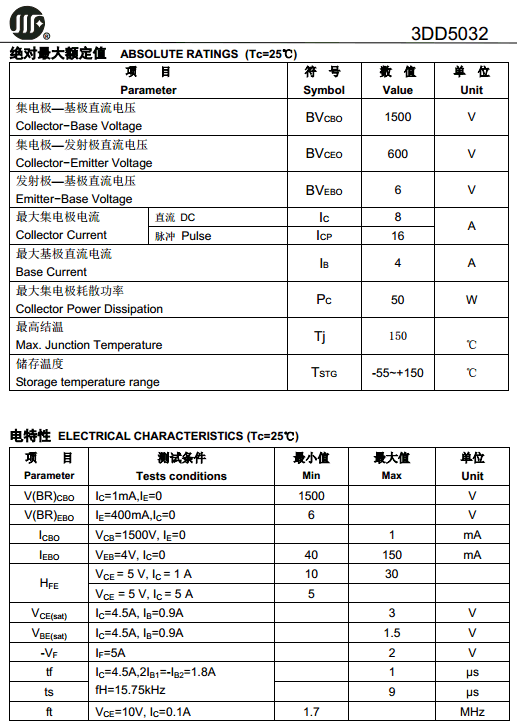

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 1500 V

2. Collector to Emitter Voltage : Vceo = 600 V

3. Emitter to Base Voltage : Vebo = 6 V

4. Collector Current : Ic = 8 A

5. Total Dissipation : Pc = 50 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C


Datasheet PDF Download :
D5032 pdf

Others datasheet of same file :

3DD5032, 3DD5032-O-A-N-D, 3DD5032-Y-O-A-B-D
