Part Number : KA8301

Function : BI-Directional DC Motor Driver

Package : SIP 10 Pin type

Maker : Samsung

Image :
KA8301 datasheet

Description :

The KA8301 is a monolithic integrated circuit designed for driving bi-directional DC motor with braking and speed control, and suitable for the loading motor driver of VCR systems.

The speed control can be achieved by adjusting the external voltage of the speed control pin.

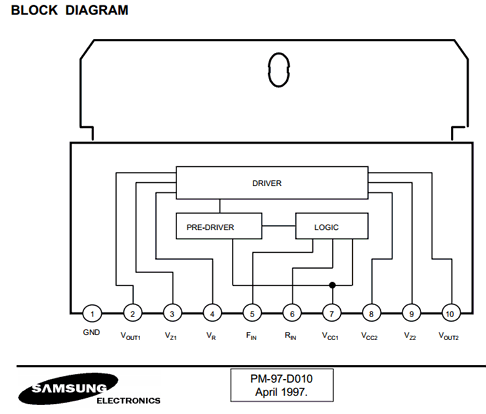

Block Diagram


1. Stable braking characteristic by built-in braking function
2. CMOS logic level compatable input level

Datasheet PDF Download :
KA8301 pdf

Others datasheet of same file :

KA-8301, KA8301L
