Part Number : CPS057
Function : Silicon Controlled Rectifier / Sensitive Gate SCR Chip
Maker : Central Semiconductor
Pinouts :
Description :

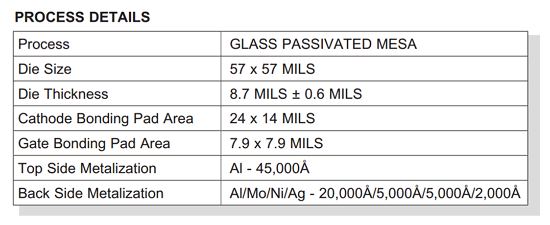

1. Process GLASS PASSIVATED MESA
2. Die Size 57 x 57 MILS
3. Die Thickness 8.7 MILS ± 0.6 MILS
4. Cathode Bonding Pad Area 24 x 14 MILS
5. Gate Bonding Pad Area 7.9 x 7.9 MILS
6. Top Side Metalization Al - 45,000Å
7. Back Side Metalization Al/Mo/Ni/Ag - 32,000Å
