Part Number : CLC1006

Function : Single, 500MHz Voltage Feedback Amplifier

Package ; SOT23-5, SOIC 8 Pin type

Maker : Exar Corporation

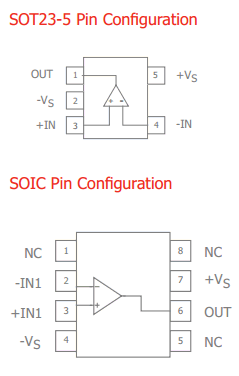

Pinouts :
CLC1006 datasheet

Description :

The COMLINEAR CLC1006 is a high-performance, voltage feedback amplifier that  offers  bandwidth and  slew  rate  usually  found  in  current  feedback  amplifiers.

The CLC1006 provides 500MHz bandwidth and 1,400V/μs slew rate exceeding the requirements of standard-definition television and other multimedia  applications.

The  COMLINEAR  CLC1006  high-performance  amplifier also provides ample output current to drive multiple video loads.

Application Circuits


Features :

1. 500MHz -3dB bandwidth at G=2
2. 1,400V/μs slew rate
3. 0.02%/0.05˚ diff. gain/phase error
4. 300MHz large signal bandwidth
5. 5.5mA supply current
6. 100mA output current

Applications :

1. Video line drivers
2. Imaging applications
3. Professional cameras
4. Differential line receivers
5. Photodiode preamps
6. Radar or communication receivers

Datasheet PDF Download :
CLC1006 pdf

Others datasheet of same file : CLC-1006, CLC1006ISO8X, CLC1006IST5X
