Part Number : C5299

Function : 1500V, 10A, NPN Transistor

Package : TO-3PML Type

Maker : SANYO , Panasonic

Image :
C5299 datasheet

Description :

NPN triple diffused planar silicon transistor

Features :

1. High speed : tf =100ns typ.

2. High breakdown voltage : VCBO=1500V.

3. High reliability (Adoption of HVP process).

4. Adoption of MBIT process.

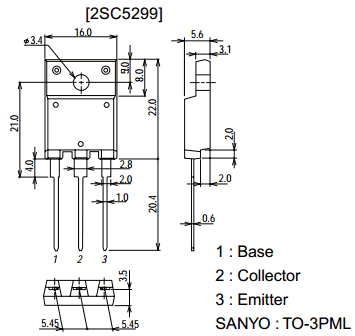

Pinouts :




Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 1500 V

2. Collector to Emitter Voltage : Vceo = 800 V

3. Emitter to Base Voltage : Vebo = 6 V

4. Collector Current : Ic = 10 A

5. Total Dissipation : Pc = 3 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C




Application :

Ultrahigh-deflection CTR display horizontal deflection output


Datasheet PDF Download :
C5299 pdf

Others datasheet of same file : 2SC5298, 2SC5299, C5298
