Part Number : 2SK3158

Function : 150V, 30A, MOSFET, Transistor

Package : TO-220AB Type

Maker : Hitachi , Renesas Electronics

Pinouts :
2SK3158 datasheet

Description :

Silicon N Channel MOSFET

Features :

•  Low on-resistance RDS=35mΩtyp.

•  High speed switching

•  4V gate drive device can be driven from 5V source

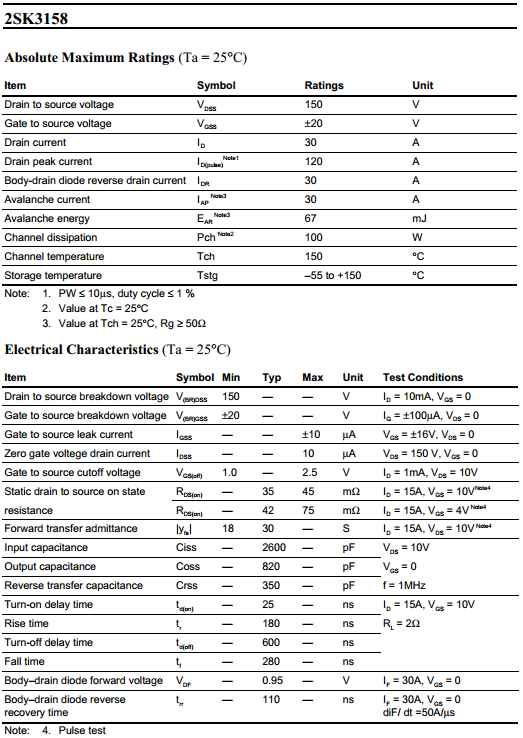

Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage : VDSS = 150 V
2. Gate to source voltage : VGSS = ± 20 V
3. Drain current : ID = 30 A
4. Channel dissipation : Pch = 100 W
5. Channel temperature : Tch =  150 °C
6. Storage temperature : Tstg = -55 to +150 °C

Application :

High Speed Power Switching


Datasheet PDF Download :
2SK3158 pdf

Others datasheet of same file : K3158
