Part Number : 2SC4105

Function : 400V, 4A, NPN Transistor

Package : TO-220AB Type

Maker : SANYO , Panasonic

Pinouts :
2SC4105 datasheet

Description :

NPN triple diffused planar silicon transistor

Features :

1. High breakdown voltage and high reliability.

2. Fast switching speed.

3. Wide ASO.

4. Adoption of MBIT process.

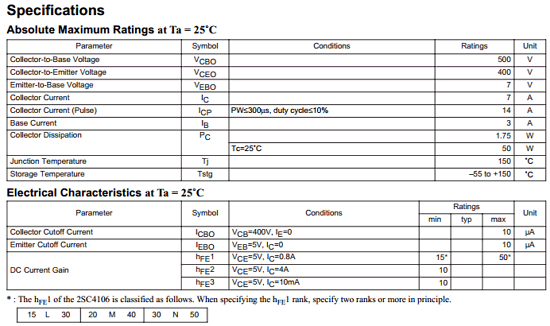

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 500 V

2. Collector to Emitter Voltage : Vceo = 400 V

3. Emitter to Base Voltage : Vebo = 7 V

4. Collector Current : Ic = 4 A

5. Total Dissipation : Pc = 1.75 W

6. Junction Temperature : Tj = 150°C



7. Storage Temperatue : Tsg = -55 ~ +150°C





Applications :

Switching Regulator

Datasheet PDF Download :
2SC4105 pdf

Others datasheet of same file : C4105
