Part Number : STR-F6600

Function : OFF-LINE QUASI-RESONANT FLYBACK SWITCHING REGULATORS

Package : TO-3P Type

Maker : Allegro Micro Systems, Sanken Electric co.,ltd.

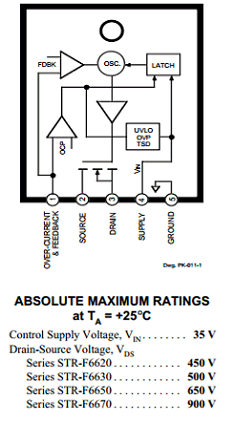

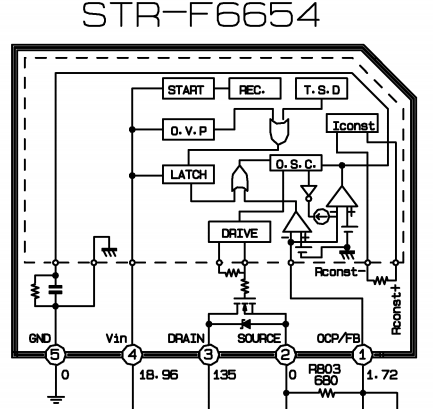

Pinouts :
STR-F6600 datasheet

Description :

The Series STR-F6600 is specifically designed to satisfy the require ments for increased integration and reliability in off-line quasi-resonant flyback converters. The series incorporates a primary control and drive circuit with discrete avalanche-rated power MOSFETs.

Covering the power range from below 25 watts up to 300 watts for 100/115/230 VAC inputs, and up to 150 watts for 85 to 265 VAC universal input, these devices can be used in a range of applications, from battery chargers and set top boxes, to televisions, monitors, and industrial power supply units.

Pinouts :



Features

1. Flyback Operation with Quasi-Resonant Soft Switching for Low Power Dissipation and EMI

2. Rugged Avalanche-Rated MOSFET

3. Choice of MOSFET Voltage and rDS(on)

4. Full Over-Current Protection (no blanking)

5. Under-Voltage Lockout with Hysteresis


Datasheet PDF Download :
STR-F6600 pdf

Others datasheet of same file :

STRF6600, STR-F6624, STR-F6626, STR-F6628, STR-F6632



PDF Download
