Part Number : 2SC3356

Marking : R25

Function : 12V, 100mA, NPN Silicon Epitaxial Transistor

Package : SOT-23 Type

Maker : Unisonic Technologies

Pinouts :
2SC3356 datasheet

Description :

The UTC 2SC3356 is designed for such applications as: DC/DC converters, supply line switching, battery charger, LCD backlighting, peripheral drivers, Driver in low supply voltage applications (e.g. lamps and LEDs) and inductive load driver (e.g. relays, buzzers and motors).


Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 20 V

2. Collector to Emitter Voltage : Vceo = 12 V

3. Emitter to Base Voltage : Vebo = 3 V

4. Collector Current : Ic =100 mA

5. Total Dissipation : Pc = 200 mW

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C

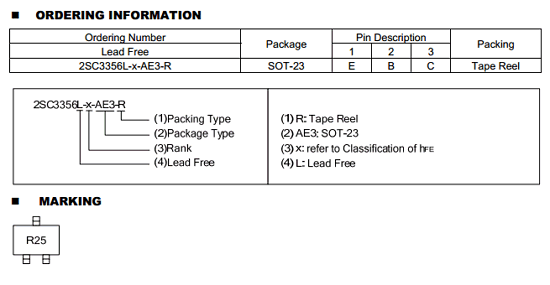

Ordering Information :

Applications :

HIGH FREQUENCY LOW NOISE AMPLIFIER

Datasheet PDF Download :
2SC3356 pdf

Others datasheet of same file : 2SC3356-X-AE3-R, C3356
