Part Number : TSA5520

Function : 1.3 GHz universal bus-controlled TV synthesizer, 3-wire

Package : SOP 16, SSOP 16 Pin Type

Maker : Philips Electronics

Pinouts :
TSA5520 datasheet

Description :

The device is a single-chip PLL frequency synthesizer designed for TV and VCR tuning systems.

The circuit consists of a divide-by-eight prescaler with its own preamplifier, a 15-bit programmable divider, a crystal oscillator and its programmable reference divider and a phase/frequency detector combined with a charge-pump which drives the tuning amplifier and the 33 V output.

Four high-current PNP band switch buffers are provided for band switching. Two PNP buffers can be switched on simultaneously. The sum of the collector currents is limited to 50 mA.

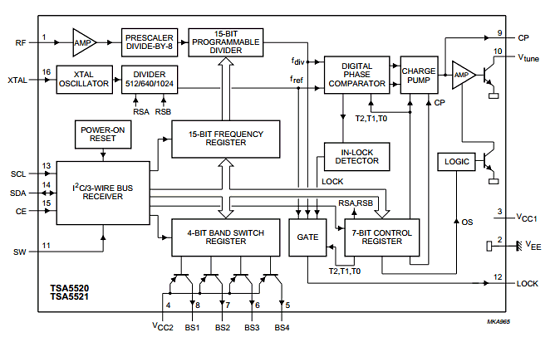

Block Diagram

Features

1. Complete 1.3 GHz single chip system

2. Four PNP band switch buffers (40 mA)

3. 33 V output tuning voltage

4. In-lock detector

5. 15-bit programmable divider

6. Programmable reference divider ratio (512, 640 or 1024)

7. Programmable charge-pump current (60 or 280 mA)

Datasheet PDF Download :
TSA5520 pdf

Others datasheet of same file :

TSA5520M, TSA5520M/C3, TSA5520M/C3/R1, TSA5520M/C4,

TSA5520T, TSA5521M, TSA5521T
