Part Number : TPS50601-SP

Function : 1.6-V TO 6.3-V INPUT, 3-A/6-A SYNCHRONOUS STEP DOWN SWIFT CONVERTER

Package : CFP 20 Pin Type

Maker : Texas Instruments

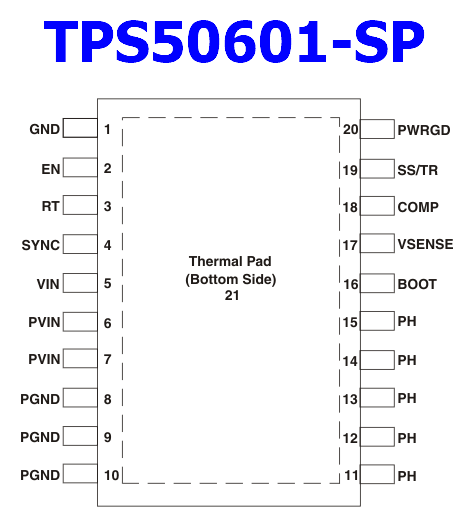

Pinouts :

사용자 삽입 이미지







Description :

The TPS50601-SP, TPS50301 is a 6.3-V, 3-A and the TPS50601 is a 6.3-V, 6-A synchronous step down converter which is optimized for small designs through high efficiency and integrating the high-side and low-side MOSFETs.

Further space savings are achieved through current mode control, which reduces component count, and a high switching frequency, reducing the inductor's footprint. The devices are offered in a thermally enhanced 20-pin ceramic, dual in-line flatpack package.

Features

1. Monotonic Start-Up into Prebiased Outputs

2. Adjustable Soft Start Through External Capacitor

3. Input Enable and Power-Good Output for Power Sequencing

4. Power Good Output Monitor for Undervoltage and Overvoltage

5. Adjustable Input Undervoltage Lockout (UVLO)

6. 20-Pin Thermally-Enhanced Ceramic Flatpack Package (HKH)

Official Homepage : https://www.ti.com/product/TPS50601-SP




Datasheet PDF Download :
TPS50601-SP pdf

Others datasheet of same file :

TPS50301-HT, TPS50301SHKH, TPS50601
