Part Number : TPS43060RTE
Function : Low Quiescent Current Synchronous Boost DC-DC Controller
Package : WQFN 16 Pin Type
Maker : Texas Instruments
Pinouts :
Description :
The TPS43060 and TPS43061 are low IQ current mode synchronous boost controllers with wide-input voltage range from 4.5 to 38 V (40 V absolute max) and boosted output range up to 58 V.
Synchronous rectification enables high-efficiency for high-current applications, and lossless inductor DCR sensing further improves efficiency. The resulting low-power losses combined with a 3-mm × 3-mm WQFN-16 package with PowerPAD™ supports high power-density and high-reliability boost converter solutions over extended (–40°C to 150°C) temperature range.

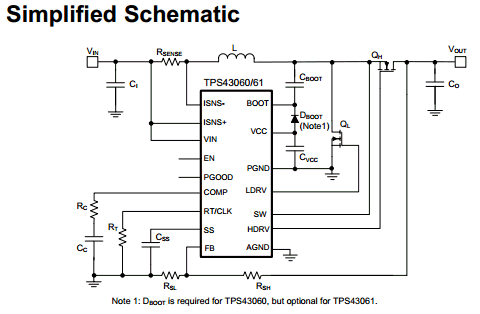

Schematic
Features
1. Current-Mode Control With Internal Slope Compensation
2. Adjustable Frequency from 50 kHz to 1 MHz
3. Synchronization Capability to External Clock
4. Adjustable Soft-Start Time
5. Inductor DCR or Resistor Current Sensing
6. Output Voltage Power-Good Indicator
7. ±0.8% Feedback Reference Voltage
8. 5-µA Shutdown Supply Current
9. 600-µA Operating Quiescent Current
Official Homepage : https://www.ti.com/product/TPS43060
Datasheet PDF Download :
Others datasheet of same file :
43060, 43061, TPS43060, TPS43060-RTE, TPS43060RTER
