Part Number : 30KPA33CA-B

Function : POWER TVS COMPONENT

Maker : Littelfuse, Inc

Image :

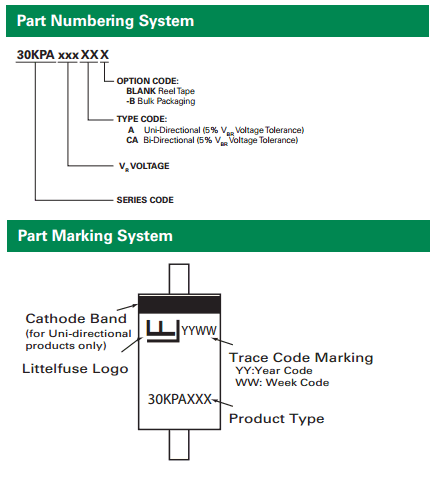

30KPA33CA-B datasheet

Description :

The 30KPA33CA-B, 30KPA Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

• Glass passivated chip junction in P600 package

• 30000W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%

• Fast response time :  typically less than 1.0ps from 0 Volts to BV min

• Excellent clamping capability

• Typical failure mode is short from over-specified voltage or current

Applications :

TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.

Datasheet PDF Download :
30KPA33CA-B pdf

Others datasheet of same file :

30KPA102A, 30KPA102CA, 30KPA108A, 30KPA108CA, 30KPA120A
