Part Number : TDA8560Q
Function : 2 x 40 W/2 Ohm stereo BTL car radio power amplifier with diagnostic facility
Package : SIP 13 Pin Type
Maker : Philips Electronics
Pinouts :
Description :
The TDA8560Q is an integrated class-B output amplifier in a 13-lead single-in-line (SIL) power package.
It contains 2×40 W/2Ωamplifiers in BTL configuration.
The device is primarily developed for car radio applications.

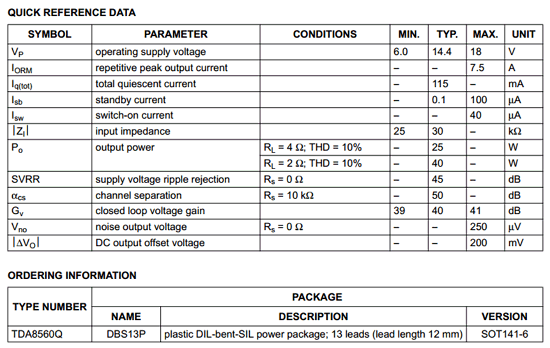

Reference Data
1. Requires very few external components
2. High output power
3. 4 W and 2 W load impedance
4. Low output offset voltage
5. Fixed gain
6. Diagnostic facility (distortion, short-circuit and temperature detection)
7. Good ripple rejection
