Part Number : TC74ACT541FT
Function : CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC

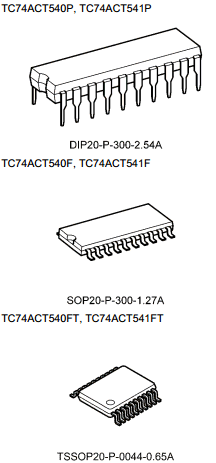

Package : DIP, SOP, TSSOP 20 Pin Type
Maker : Toshiba

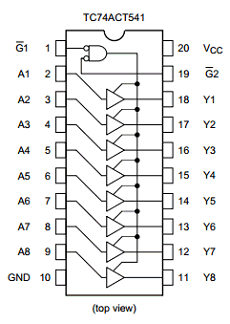

Pinouts :
Description :
The TC74ACT541FT, TC74ACT540, TC74ACT541 are advanced high speed CMOS OCTAL BUS BUFFERs fabricated with silicon gate and double-layer metal wiring C2 MOS technology.
They achieve the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation.
Features :
• High speed: tpd = 4.3 ns (typ.) at VCC = 5 V
• Low power dissipation: ICC = 8 μA (max) at Ta = 25°C
• Compatible with TTL outputs : VIL = 0.8 V (max) VIH = 2.0 V (min)
Datasheet PDF Download :
Others datasheet of same file :
TC74ACT540F, TC74ACT540, TC74ACT540P, TC74ACT541F, TC74ACT541FT
