Part Number : Q62702-A1188
Function : 10V, Schottky Diode, Rectifier
Package : SOD-323 Type
Maker : Siemens AG
Pinouts :
Description :
1. Rectifier Schottky diode with extreme low VFdrop for mobile communication
2. For power supply
3. For clamping and proptection in low voltage application
4 For detection and step-up-conversion

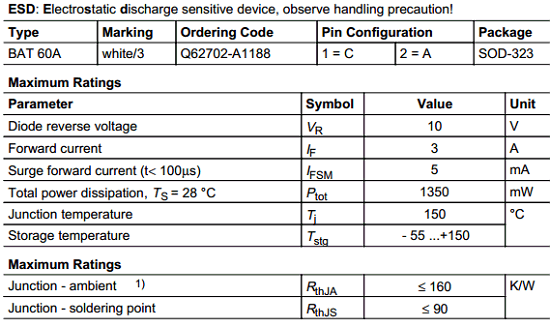

Maximum Ratings
1. Diode reverse voltage : VR = 10 V
2. Forward current : IF = 3 A
3. Surge forward current (t< 100ms) : IFSM = 5 mA
4. Total power dissipation, TS = 28 °C : Ptot = 1,350 mW
5. Junction temperature : Tj 150 °C
6. Storage temperature Tstg - 55 ...+150°C
Datasheet PDF Download :
Others datasheet of same file : BAT60A, Q62702A1188
