Part Number : P7NA60

Function : 600V, N-CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

Package : TO-220, ISOWATT220

Maker : STMicroelectronics

Image :

사용자 삽입 이미지





Description :

This series of POWER MOSFETS represents the most advanced high voltage technology. The optimized cell layout coupled with a new proprietary edge termination concur to give the device low RDS(on)and gate charge, unequalled ruggedness and superior switching performance.

Features

1. TYPICAL RDS(on) = 0.92 W

2. ± 30V GATE TO SOURCE VOLTAGE RATING

3. 100% AVALANCHE TESTED

4. REPETITIVE AVALANCHE DATA AT 100oC

5. LOW INTRINSIC CAPACITANCES

6. GATE GHARGE MINIMIZED

7. REDUCED THRESHOLD VOLTAGE SPREAD

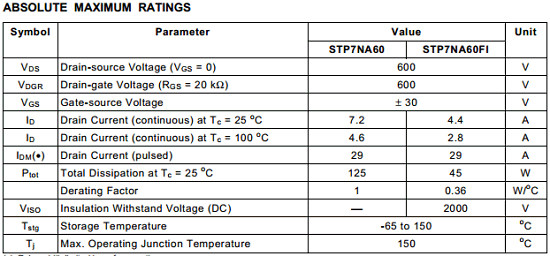

Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage : VDSS = 600 V

2. Gate to source voltage : VGSS = ± 30 V

3. Drain current : ID =  7.2 A

4. Total Power Dissipation : Pd = 125 W

5. Channel temperature : Tch =  150 °C

6. Storage temperature : Tstg = -65 to +150 °C

Applications :

1. HIGH CURRENT, HIGH SPEED SWITCHING

2. SWITCH MODE POWERSUPPLIES (SMPS)



Datasheet PDF Download :
P7NA60 pdf

Others datasheet of same file :

P7NA60FI, STP7NA60, STP7NA60FI
