Part Number : OB3350
Function : Cost Effective LED Controller
Packag : SO 8 Pin Type
Maker : On-Bright Electronics
Image :
Description :
OB3350 is a highly integrated and cost effective Light Emitting Diode (LED) driver optimized for LCD monitor and LCDTV backlighting application.
It provides a high performance LED backlight solution with minimized BOM count.
The OB3350 contains a PWM boost driver which uses current mode control and fixed frequency operation to regulate the LED current. The LED current is sensed through an external current sense resistor. The voltage across the sensing resistor is compared with reference level of 300mV, the error is amplified to control the pulse width of the power switch thus to regulate the current flowing the LED.
Features
1. Current Mode PWM Controller With Good Dynamic Response
2. 8V to 35V Input Voltage Range
3. External PWM Dimming Mode
4. Over Voltage Protection
5. Over Current Protection
6. Under Voltage Lockout (UVLO)
7. Thermal Shutdown

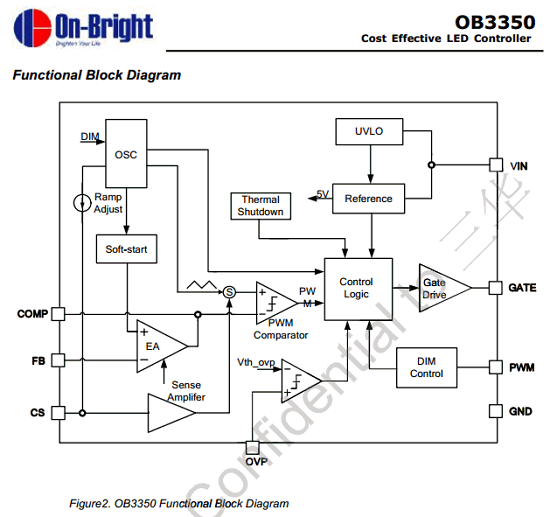

Block Diagram
Applications
1. LCD Monitor
2. LCD TV
3. Flat panel display
