Part Number : MMA7260

Function : Three Axis Low-g Micromachined Accelerometer

Package : QFN 16 Pin Type

Maker : Freescale Semiconductor

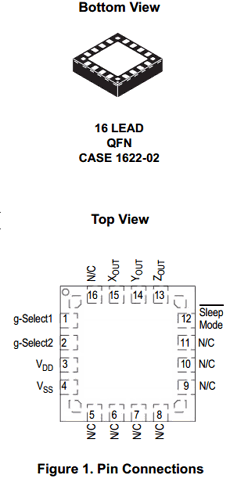

Pinouts :
MMA7260 datasheet

Description :

The MMA7260 low cost capacitive micromachined accelerometer features signal conditioning, a 1-pole low pass filter, temperature compensation and g-Select which allows for the selection among 4 sensitivities. Zero-g offset full scale span and filter cut-off are factory set and require no external devices.

Includes a Sleep Mode that makes it ideal for handheld battery powered electronics.

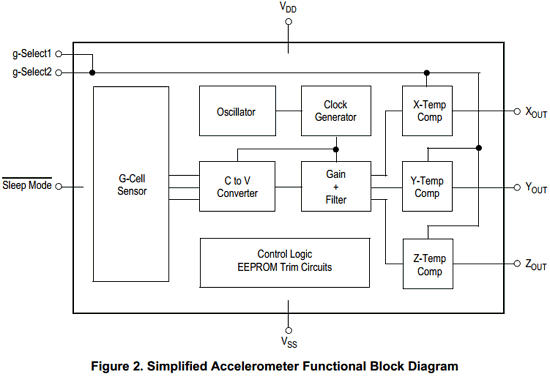

Block Diagram

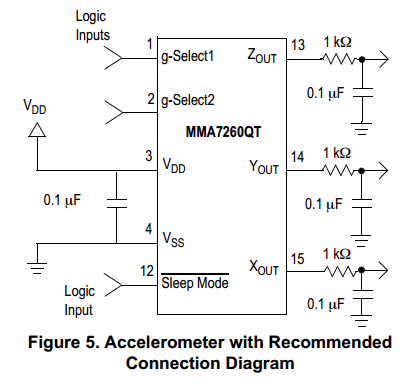

 Connection Diagram

Typical Applications :
1. HDD MP3 Player: Freefall Detection
2. Laptop PC: Freefall Detection, Anti-Theft
3. Cell Phone: Image Stability, Text Scroll, Motion Dialing, E-Compass
4. Pedometer: Motion Sensing
5. PDA: Text Scroll
6. Navigation and Dead Reckoning: E-Compass Tilt Compensation
7. Gaming: Tilt and Motion Sensing, Event Recorder
8. Robotics: Motion Sensing
Datasheet PDF Download :
MMA7260 pdf

Others datasheet of same file : MMA-7260, MMA7260QR2, MMA7260QT
