Part Number : LM311J-8
Function : Voltage Comparator
Package : DIP 8 Pin type
Maker : National , Texas Instruments

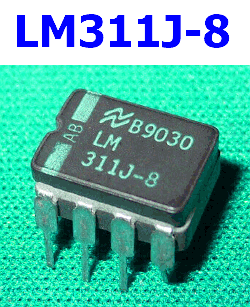

Image :
Description :
The LM111, LM211 and LM311 are voltage comparators that have input currents nearly a thousand times lower than devices like the LM106 or LM710. They are also designed to operate over a wider range of supply voltages: from standard ±15V op amp supplies down to the single 5V supply used for IC logic. Their output is compatible with RTL, DTL and TTL as well as MOS circuits. Further, they can drive lamps or relays, switching voltages up to 50V at currents as high as 50 mA.
Features
1. Operates from single 5V supply
2. Input current: 150 nA max. over temperature
3. Offset current: 20 nA max. over temperature
4. Differential input voltage range: ±30V
5. Power consumption: 135 mW at ±15V
Acquired by Texas Instruments on September 23rd, 2011.
