Part Number : KIA6043S

Function : PLL FM stereo multiplex IC for audio

Package : SIP-9 Pin

Maker : KEC

Image :
KIA6043S datasheet

Description :

The KIA6043S is PLL FM stereo multiplex IC.

It is suitable for automotive applications and portable radio applications because of space merit by the package and wide supply voltage range.

Features

1. Excellent Pilot Lamp Sensitivity. : VL(ON)=9mVrms (Typ.)

2. Suitable for LED Driving. : ILAMP=20mA(Max.)

3. Recommendable Input Voltage Range. : VIN=200 700mVrms

4. Operating Supply Voltage Range. : VCC=3.5 12V

5. Excellent Channel Separation. : Sep=45dB(Typ.)

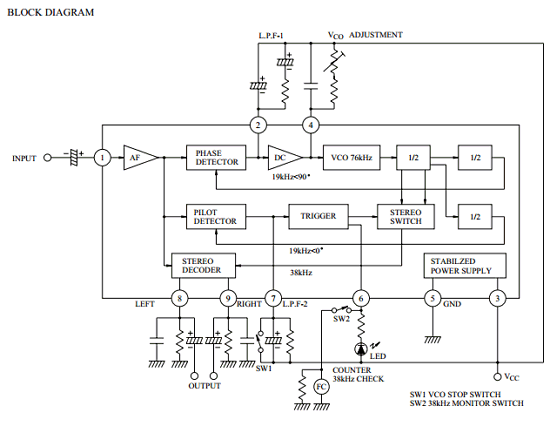

 Block Diagram




Datasheet PDF Download :
KIA6043S pdf

Others datasheet of same file : KIA6043, KIA6043-S
