Part Number : K3158
Function : 150V, 30A, Silicon N Channel MOSFET, Transistor
Package : TO-220AB Type
Maker : Renesas Electronics
Pinouts :
Description :
• Low on-resistance RDS=40mΩ typ.
• High speed switching
• 4V gate drive device can be driven from 5V source

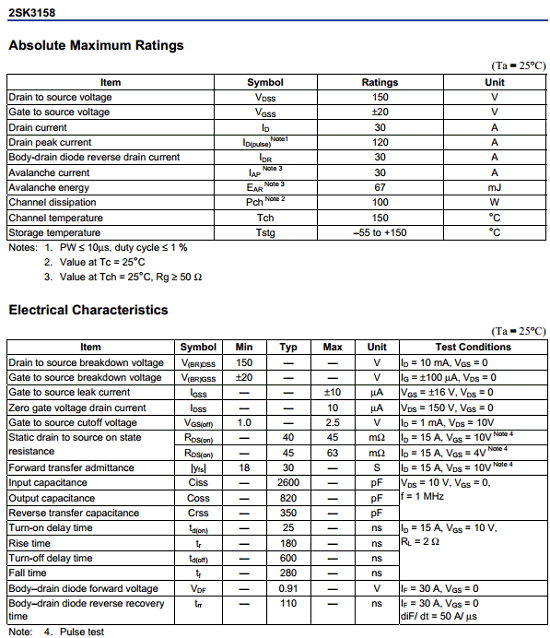

Absolute Maximum Ratings (Ta = 25°C)
1. Drain to source voltage : VDSS = 150 V
2. Gate to source voltage : VGSS = ± 20 V
3. Drain current : ID = 30 A
4. Channel dissipation : Pch = 100 W
5. Channel temperature : Tch = 150 °C
6. Storage temperature : Tstg = -55 to +150 °C
Applications :
High Speed Power Switching
Datasheet PDF Download :
Others datasheet of same file :
2SK3158, 2SK3158-E
