Part Number : K2725
Function : 500V, 5A, MOSFET, Transistor
Package : TO-220CFM Type
Maker : Hitachi , Renesas Electronics
Pinouts :
Description :
Silicon N Channel MOS FET
Features :
• Low on-resistance
• High speed switching
• Low drive current
• No secondary breakdown
• Avalanche ratings

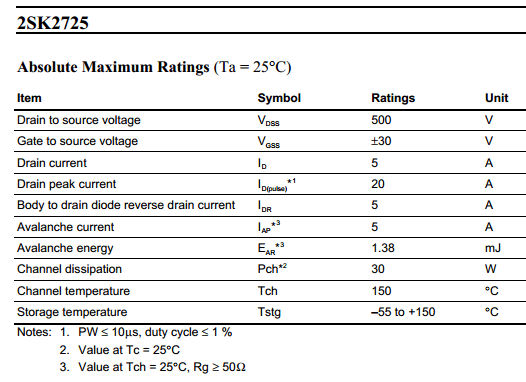

Absolute Maximum Ratings (Ta = 25°C)
1. Drain to source voltage : VDSS = 500 V
2. Gate to source voltage : VGSS = ± 30 V
3. Drain current : ID = 5 A
4. Channel dissipation : Pch = 30 W
5. Channel temperature : Tch = 150 °C
6. Storage temperature : Tstg = -55 to +150 °C
Applications :
High Speed Power Switching
Datasheet PDF Download :
Others datasheet of same file : 2SK2725
