Part Number : K2182

Function : 500V, 3A, VX-2 Series Power MOSFET, Transistor

Package : TO-220 Type

Maker : Shindengen

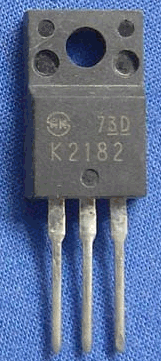

Image :
K2182 datasheet

Description :

N-Channel Enhancement type Transistor

Features :

1. Input capacitance (Ciss ) is small.

2. The Static Rds(on) i small.

3. The Switching time is fast.

Applications

1. Switching power supply of AC 100V input

2. High voltage power supply

3. Inverter



Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage : VDSS = 500 V

2. Gate to source voltage : VGSS = ± 30 V

3. Drain current : ID = 3 A

4. Total Power Dissipation : Pd = 25 W

5. Channel temperature : Tch =  150 °C



6. Storage temperature : Tstg = -55 to +150 °C


Datasheet PDF Download :
K2182 pdf

Others datasheet of same file : 2SK2182, F3F50VX2
