Part Number : HJ13002
Function : NPN Epitaxial Silicon Transistor
Package : TO-126 Type
Maker : Hefei Hejing
Pinouts :
Description :
Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 600 V
2. Collector to Emitter Voltage : Vceo = 400 V
3. Emitter to Base Voltage : Vebo = 7 V
4. Collector Current : Ic = 0.75 A
5. Total Dissipation : Pc = 15 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C

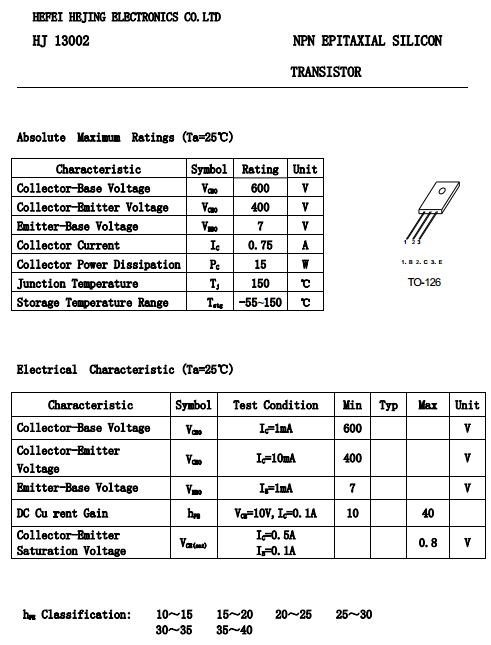

Datasheet PDF Download :
Others datasheet of same file : HJ13002
