Part Number : HEF4585B

Function : 4-bit, Magnitude Comparator

Package : DIP 16 Pin

Maker : NXP Semiconductors.

Pinouts :
HEF4585B datasheet

Description :

The HEF4585B is a 4-bit magnitude comparatorthat compares two 4-bit words, A and B, and determines whether A is greater than B, A is equal to B, or A is less than B. Each word has four parallel inputs (A0 to A3 and B0 to B3) with A3 and B3 being the most significant inputs.

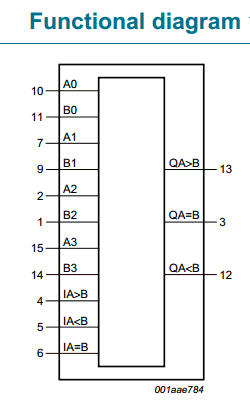

Function Diagram


1. Fully static operation

2. 5 V, 10 V, and 15 V parametric ratings

3. Standardized symmetrical output characteristics

4. Complies with JEDEC standard JESD 13-B

Datasheet PDF Download :
HEF4585B pdf

Others datasheet of same file :

4585B, 4585BP, 4585BT, HEF4585, HEF4585BP
