Part Number : D788
Function : 20V, 2A, NPN Transistor
Package : TO-92MOD Type
Maker : Hitachi , Renesas Electronics
Pinouts :
Description :
Silicon NPN Epitaxial Transistor
Features :
• Low frequency power amplifier
• Complementary pair with 2SB738 and 2SB739

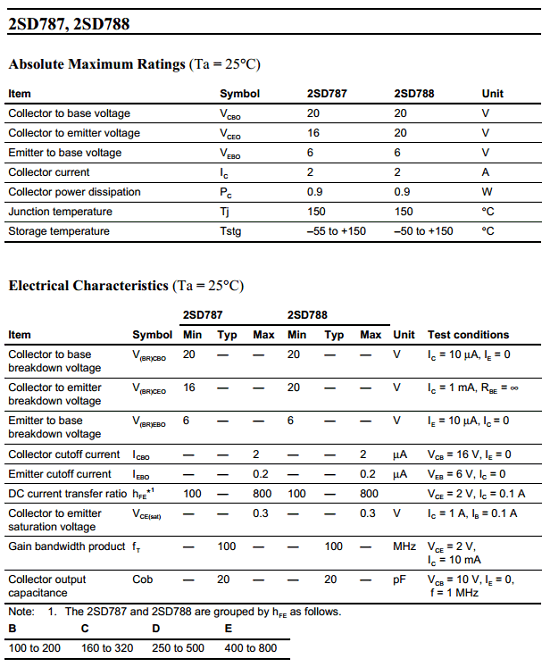

Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 20 V
2. Collector to Emitter Voltage : Vceo = 20 V
3. Emitter to Base Voltage : Vebo = 6 V
4. Collector Current : Ic = 2 A
5. Total Dissipation : Pc = 0.9 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Datasheet PDF Download :
Others datasheet of same file : 2SD787, 2SD788, D787
