Part Number : 2SC3518-Z

Function : 60V, 5A, NPN Transistor

Package : TO-252 Type

Maker : NEC , Renesas Technology

Pinouts :
2SC3518-Z datasheet

Description :

2SC3518-Z is designed for Audio Frequency Amplifier and Swtiching, especially in Hybrid Integrated Circuits.

Features :

• High DC Current Gain hFE = 100 to 400

• Low VCE(sat): VCE(sat) = 0.09 V TYP.



• Complement to 2SA1385-Z




Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 60 V
2. Collector to Emitter Voltage : Vceo = 60 V
3. Emitter to Base Voltage : Vebo = 7 V
4. Collector Current : Ic = 5 A
5. Total Dissipation : Pc = 2 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C


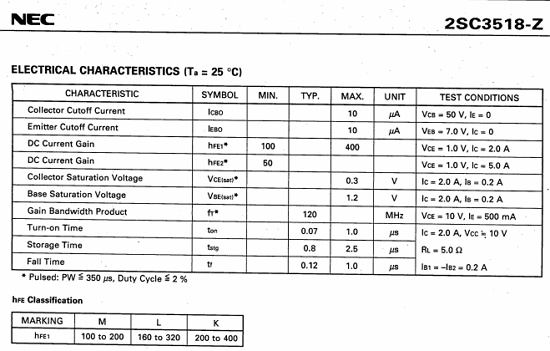

Datasheet PDF Download :
2SC3518-Z pdf

Others datasheet of same file : 2SC3518, C3518-Z, C3518
