Part Number : D1197
Function : 100V, 10A, NPN Epitaxial Planar Silicon Darlington Transistor
Package : TO-3PB Type
Maker : SANYO , Panasonic
Pinouts :
Description :
Epitaxial Planar Silicon Darlington Transistor
Features :
1. High DC current gain.
2. Large current capacity and wide ASO.
3. Low saturation voltage.

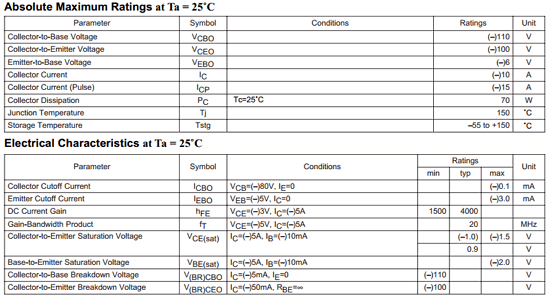

Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 110 V
2. Collector to Emitter Voltage : Vceo = 100 V
3. Emitter to Base Voltage : Vebo = 6 V
4. Collector Current : Ic = 10 A
5. Total Dissipation : Pc = 70 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Applications :
1. Motor drivers, printer hammer drivers, relay drivers, voltage regulator control.
Datasheet PDF Download :
Others datasheet of same file : 2SB887, 2SD1197, B887
