Part Number : D1164

Function : 150V, 2A, NPN Silicon Epitaxial Transistor

Package : TO-252, MP-3Z Type

Maker : NEC , Renesas Technology

Pinouts :
D1164 datasheet

Description :

D1164 is designed for low frequency amplifier and switching, especially in Hybrid intergated circuits.


Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 150 V

2. Collector to Emitter Voltage : Vceo = 60 V

3. Emitter to Base Voltage : Vebo = 8 V

4. Collector Current : Ic = 2 A

5. Total Dissipation : Pc = 2 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C

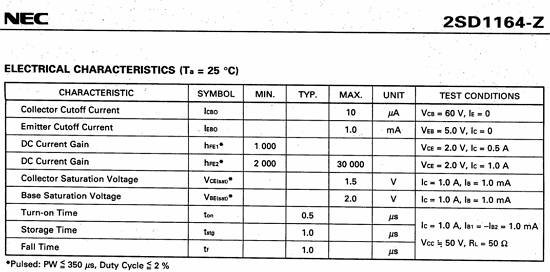

Block Diagram






Datasheet PDF Download :
D1164 pdf

Others datasheet of same file :

2D1164-Z, 2SD1164, D1164-Z
