Part Number : D1090
Function : NPN DOUBLE DIFFUSED TYPE TRANSISTOR
Maker : Toshiba

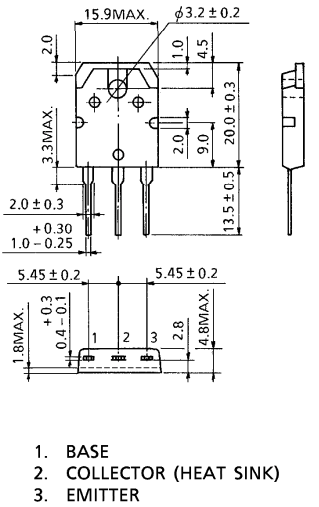

Image :
Description :
1. High Voltage : Vcbo = 180V
2. High DC Current Gain : hFE = 500 (Min.)
3. Large Collector Power Dissipation Capability : Pc = 80W
Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 200 V
2. Collector to Emitter Voltage : Vceo = 180 V
3. Emitter to Base Voltage : Vebo = 5 V
4. Collector Current : Ic = 5 A
5. Total Dissipation : Pc = 80 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Datasheet PDF Download :
Others datasheet of same file : 2SD1090
