Part Number : CM3323
Function : Color Sensor with I2C Interface
Package : 4 pin OPLGA, 2.0x1.25x1.00mm Type
Maker : http://www.capellamicro.com.tw/

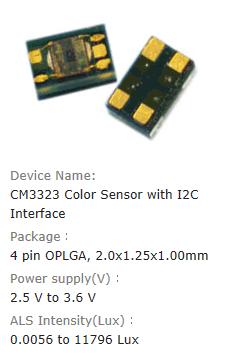

Image :
Description :
CM3323 Color Sensor senses Red, Green, Blue and White light and incorporates photodiode, amplifiers and analog/digital circuits into a single chip using CMOS process. With the color sensor applied, the brightness and color temperature of backlight can be adjusted base on ambient light source that makes panel looks more comfortable for end user’s eyes. The adoption of Capella’s patented Filtron technology achieves the closest ambient light spectral sensitivity to real human eye responses.
Features
1. Filtron technology provides a spectrum matching real human eye responses
2. Supports low transmittance (dark) lens design
3. Fluorescent light flicker immunity
4. Provides 16-bit resolution for each channel (R,G,B,W)
5. Selectable maximum detection range (360\721\1442\2883\5767\11796) lux with highest sensitivity 0.0056 lux/step
