Part Number : C2938
Function : NPN Transistor, 400V, 10A, 100Watts

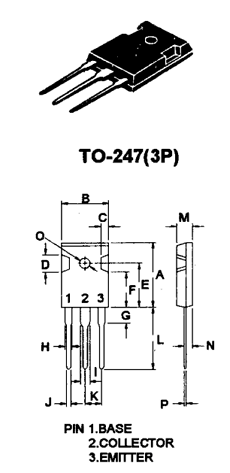

Package : TO-247-3Pin
Maker : Mospec Semiconductor
Pinouts :
Description :
NPN Silicon Power Transistor, 2SC2938

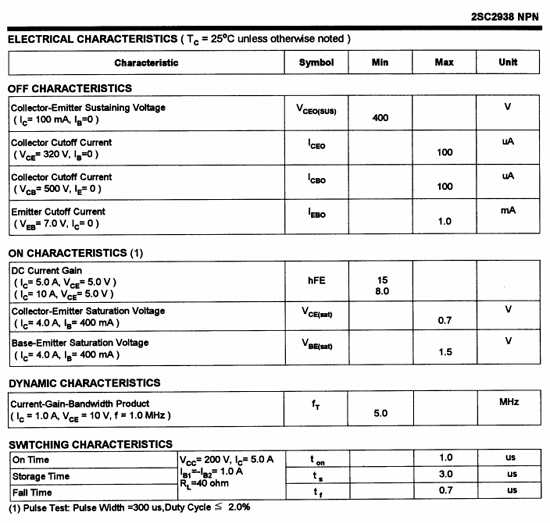

Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 500 V
2. Collector to Emitter Voltage : Vceo = 400 V
3. Emitter to Base Voltage : Vebo = 7 V
4. Collector Current : Ic = 10 A
5. Total Dissipation : Pc = 100 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Datasheet PDF Download :
Others datasheet of same file : 2SC2938
