Part Number : C1384
Function : 50V, 1A, NPN Transistor
Package : TO-92 Type
Maker : Panasonic Corporation

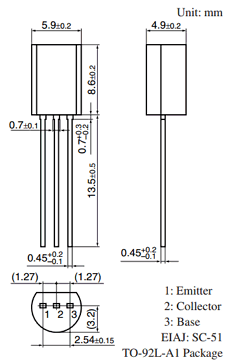

Pinouts :
Description :
Silicon NPN epitaxial planar type Transistor
Features :
1. Low collector-emitter saturation voltage VCE(sat)
2. Complementary pair with 2SA0683, 2SA0684
3. For low-frequency power amplification and driver amplification
4. Complementary to 2SA0683, 2SA0684
Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 60 V
2. Collector to Emitter Voltage : Vceo = 50 V
3. Emitter to Base Voltage : Vebo = 5 v
4. Collector Current : Ic = 1 A
5. Total Dissipation : Pc = 1 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Datasheet PDF Download :
Others datasheet of same file : 2SC1383, 2SC1384, C1383
