Part Number : ADAM26P20

Function : SINGLE REMOTE CONTROL TRANSMITTER

Package : SOP, TSSOP 20 Pin Type

Maker : ABOV Semiconductor

Image :
ADAM26P20 datasheet

Description :

The ADAM26P20, ADAM26XXX is remote control transmitter which uses CMOS Technology.


The ADAM26XXX is suitable for remote control of TV, VCR, FANS, Air-conditioners, Audio Equipments,
Toys, Games etc.

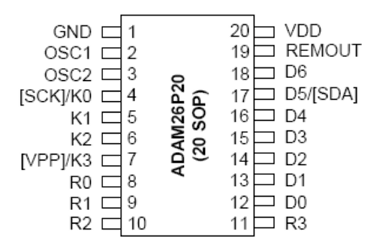

Pinouts :

Features

1. Data memory (RAM) : 32 nibble (32 x 4bit)

2. Stop mode

3. Released stop mode by key input

4. Built in Power-on Reset circuit

5. Built in Transistor for I.R LED Drive


Datasheet PDF Download :
ADAM26P20 pdf

Others datasheet of same file :

ADAM26P16, ADAM26P20S, ADAM26P20T, ADAM26P23
