Part Number : 2SK3061
Function : 60V, N-channel MOSFET for large current switching
Package : TO-220 Type
Maker : NEC , Renesas Technology
Pinouts :
Description :
This product is N-Channel MOS Field Effect Transistor designed for high current switching application.
Features :
1. Low on-state resistance
RDS(on)1= 8.5 mΩMAX. (VGS= 10 V, ID= 35 A)
RDS(on)2= 12 mΩMAX. (VGS= 4.0 V, ID= 35 A)
2. Low Ciss: Ciss= 5200 pF TYP.

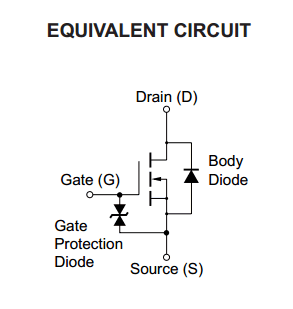

3. Built-in gate protection diode
4. Isolated TO-220 package
Absolute Maximum Ratings (Ta = 25°C)
1. Drain to source voltage : VDSS = 60 V
2. Gate to source voltage : VGSS = ± 20 V
3. Drain current : ID = 70 A
4. Total Power Dissipation : Pd = 35 W
5. Channel temperature : Tch = 150 °C
6. Storage temperature : Tstg = -55 to +150 °C
Datasheet PDF Download :
Others datasheet of same file : K3061
