Part Number : 2SD772
Function : 80V, 5A, NPN Transistor
Package : TO-220 Type
Maker : SavantIC Semiconductor
Pinouts :
Description :
SILICON EPITAXIAL PLANAR NPN TRANSISTOR
Features :
1. With TO-220C package
2. High breakdown voltage
3. High speed switching

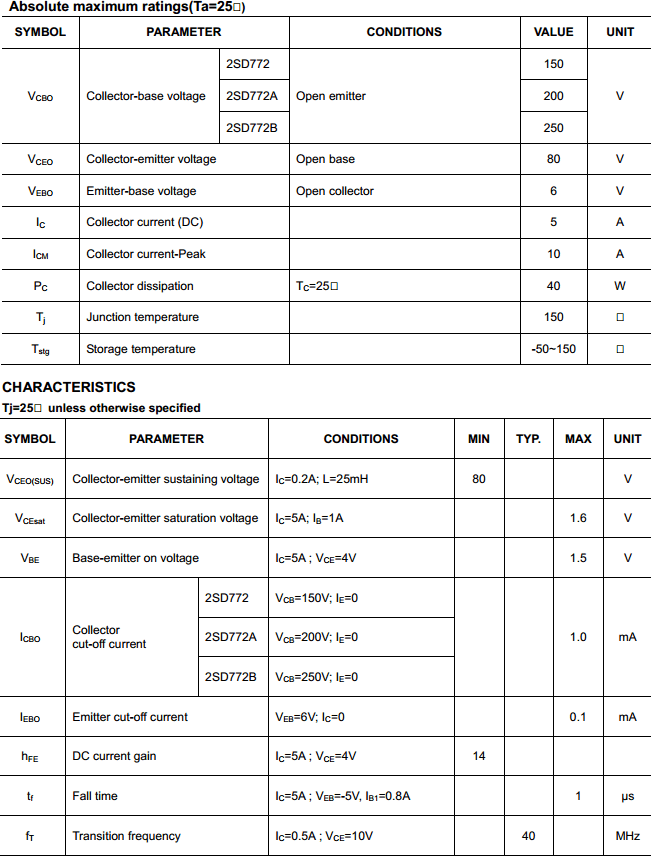

Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 150 V
2. Collector to Emitter Voltage : Vceo = 80 V
3. Emitter to Base Voltage : Vebo = 6 V
4. Collector Current : Ic = 5 A
5. Total Dissipation : Pc = 40 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -50 ~ +150°C
Applications :
1. For power amplifier applications
Datasheet PDF Download :
Others datasheet of same file : D772, 2SD772A, 2SD772B
