Part Number : 2SC5296

Function : 800V, 8A, NPN Transistor

Package : TO-3PML type

Maker : SavantIC Semiconductor

Pinouts :
2SC5296 datasheet

Description :

Silicon NPN Power Transistor


Features :

1. With TO-3PML package

2. High breakdown voltage, high reliability.

3. High speed

4. Built in damper diode

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 1500 V

2. Collector to Emitter Voltage : Vceo = 800 V

3. Emitter to Base Voltage : Vebo = 6 V

4. Collector Current : Ic = 8 A

5. Total Dissipation : Pc = 3 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C




Applications :

1. Ultrahigh-definition CRT display

2. Horizontal deflection output


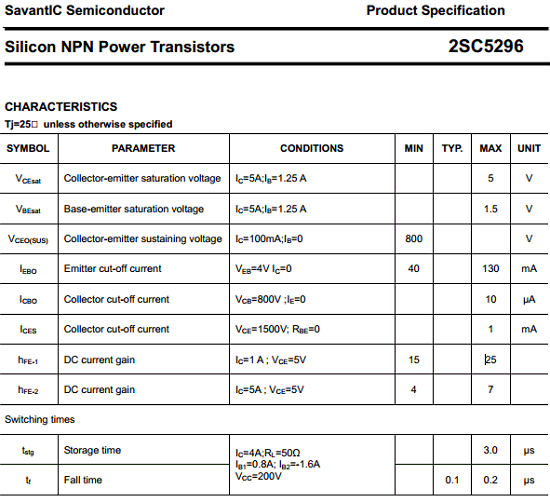

Datasheet PDF Download :
2SC5296 pdf

Others datasheet of same file : C5296
