Part Number : 2SA2069
Function : - 20V, - 1.5A, PNP Transistor
Maker : Toshiba
Pinouts :
Description :
Silicon PNP Epitaxial Type Transistor
Features :
• High DC current gain: hFE= 200 to 500 (IC= −0.5 A)
• Low collector-emitter saturation: VCE (sat)= −0.27 V (max)
• High-speed switching: tf= 55 ns (typ.)

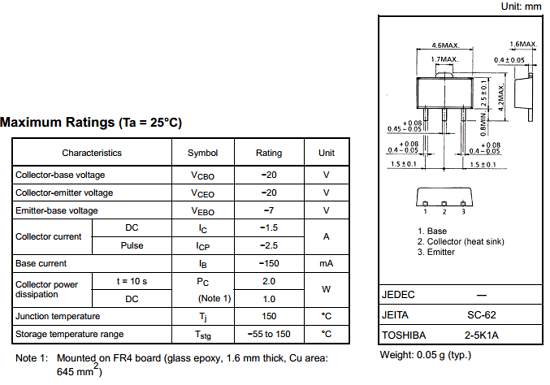

Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = - 20 V
2. Collector to Emitter Voltage : Vceo = - 20 V
3. Emitter to Base Voltage : Vebo = - 7 V
4. Collector Current : Ic = - 1.5 A
5. Total Dissipation : Pc = 1 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Applications :
1. High-Speed Switching
2. DC-DC Converter
