Part Number : 2N930
Function : NPN SILICON PLANAR TRANSISTOR
Package : TO-18 Metal Can
Maker : Continental Device India Limited
Pinouts :
Description :
Low Noise Transistor

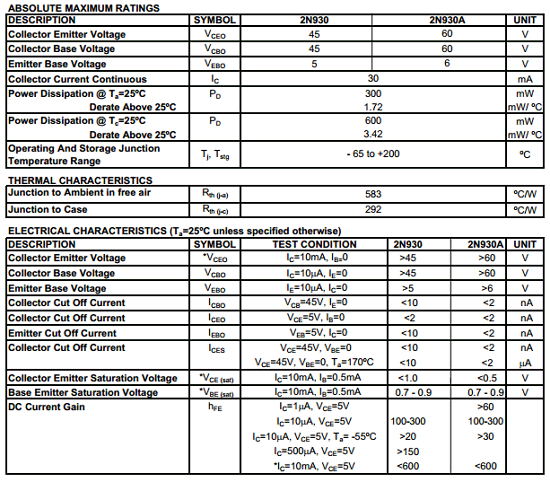

Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 45 V
2. Collector to Emitter Voltage : Vceo = 45 V
3. Emitter to Base Voltage : Vebo = 5 V
4. Collector Current : Ic = 30 mA
5. Total Dissipation : Pc = 300 mW
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Datasheet PDF Download :
Others datasheet of same file : 2N930A
