Part Number : 2N3714
Function : 100V, 10A, NPN silicon power transistor
Package : TO-3 Type
Maker : Central Semiconductor
Image :
Description :
The CENTRAL SEMICONDUCTOR 2N3713, 2N3714, 2N3715, and 2N3716 are silicon NPN power transistors manufactured by the epitaxial-base process, mounted in a hermetically sealed metal package designed for medium speed switching and amplifier applications.

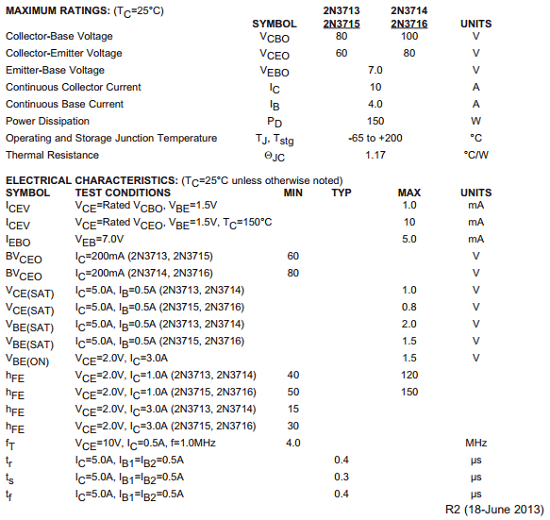

Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 100 V
2. Collector to Emitter Voltage : Vceo = 80 V
3. Emitter to Base Voltage : Vebo = 7 V
4. Collector Current : Ic = 10 A
5. Total Dissipation : PD = 150 W
6. Junction Temperature : Tj = 200°C
7. Storage Temperatue : Tsg = -65 ~ +200°C
