Part Number : UP6161

Function : Single 12V Input Supply Dual Regulator Synchronous Buck PWM and Linear Regulator Controller

Package : SOP 14, QFN3x3-16 Type

Maker : UPI

Image :


Description :

The uP6161 integrates a high performance synchronous rectified buck controller and a linear-regulator controller. This part works with a single +12V supply voltage and delivers two high quality output voltages for both processing unit and memory unit. An internal linear regulator provides optimum 9V drive voltage for efficiency and thermal management.

Pinout

UP6161 datasheet

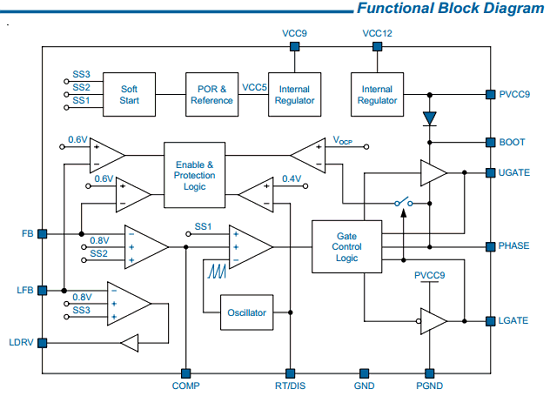

Block Diagram

Applications
1. Power Supplies for Microprocessors or Subsystem Power Supplies
2. Cable Modems, Set Top Boxes, and DSL Modems
3.  Industrial Power Supplies; General Purpose Supplies
4. 12V Input DC-DC Regulators
5.  Low-Voltage Distributed Power Supplies

Application Circuit


Datasheet PDF Download :
UP6161 pdf

Others datasheet of same file : UP6161Q, UP6161S14
